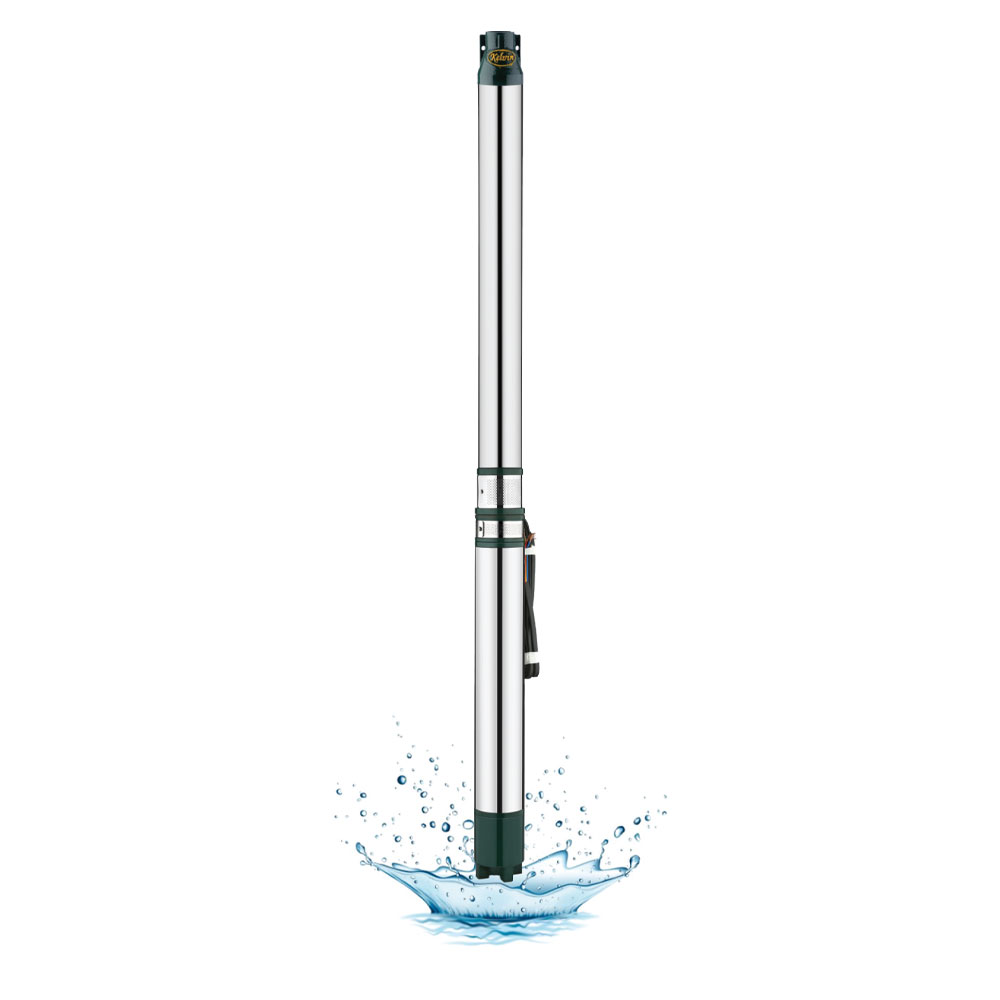

V3 Submersible Pump Set
Salient Features
Applications
Salient Features
- High operating efficiency
- High capacity winding wire
- Designed for wide voltage operation
- Extremely hard wearing water lubricated
- bearing
- 15% to 20% less power consumption
- More durable
- Suitable for 80 mm borewell
- One year warranty on manufacturing defect
Applications
- Domestic, Water Supply
- Cooling Water Circulation, Fountains
- Hospitals and Bunglows
- Gardening and Nurseries
- General Industries and Housing-Complex
Technical Specification
Material of Construction
Technical Specification
| H.P. Range | 0.5 to 1.5 H.P. Single Phase |
| Operating Discharge Range | 20 to 90 L.P.M. |
| Operating Head Range | 10 to 120 Meter |
| Per Stage Duty Point Head | 2.75 Meter |
| Speed | 2880 RPM |
| Outlet Size In Inch | 1.0″,1.25″ & 1.5″ |
| Operating Voltage Range | 180 to 240 Volt Single Phase |
Material of Construction
| Motor & Pump Body | S.S. J4 |
| Stamping | CRNGO 50C-600 Grade |
| Rotor | EC Grade Copper |
| Thrust Bearing | Carbon |
| Bush | LTB-4 |
| Base, Housing, Connection, Suction & NRV Body | C.I/FG-200 |
| Motor Body Shaft | S.S. 420 |
| Pump Shalt & Couple | S.S. 410 |
| Bowl & Impeller | Noryl (30% G.F.) |
| Winding Wire | EC Grade Copper with Three Coated Polywrap |
