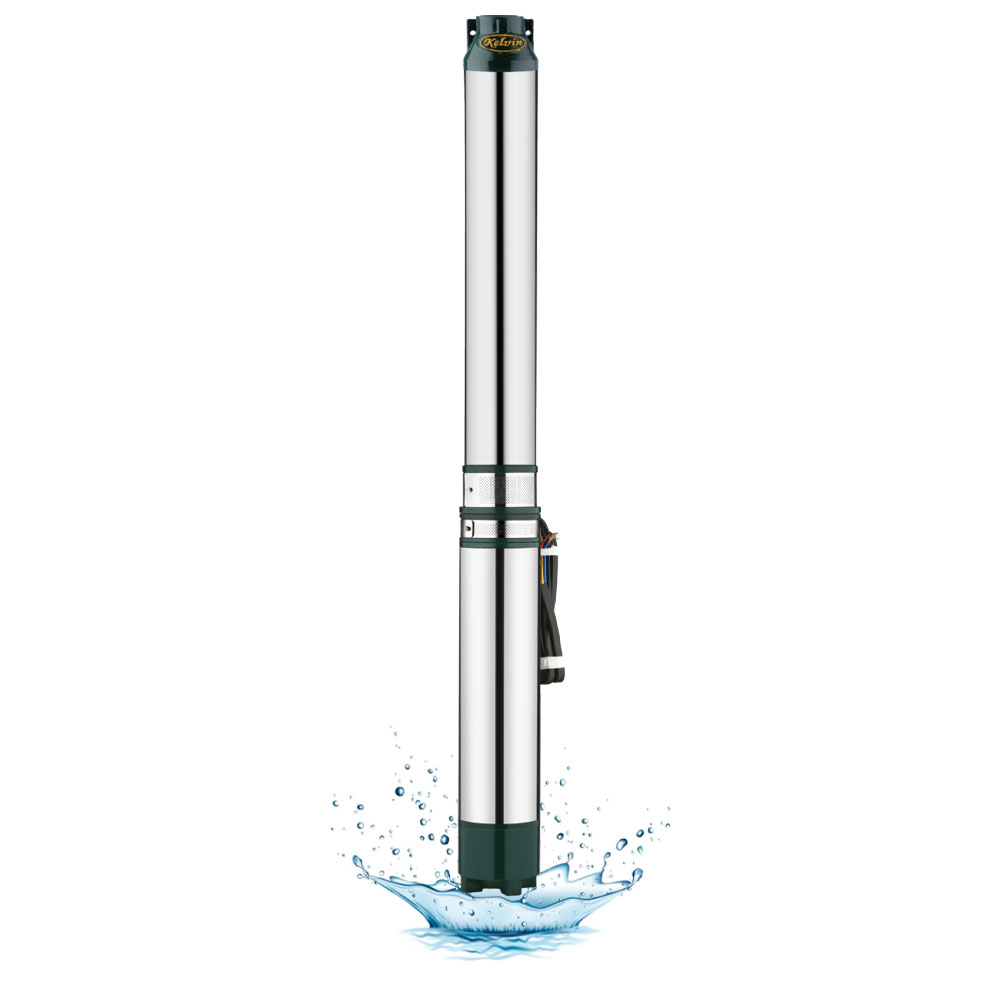

V5 Submersible Pump Set
Salient Features
Applications
Salient Features
- High operating efficiency
- High-capacity winding wire
- Designed for wide voltage operation
- Extremely hard wearing water-lubricated
- bearing
- 15% to 20% less power consumption
- More durable
- Suitable for 150 mm borewell
- One year warranty on manufacturing defect
Applications
- High-rise Building, Housing-Complex
- Cooling Water Circulation, Booster Applications, and De-watering of Mines
- Sprinkler Irrigation, Drip Irrigation, and Gardening
- Landscaping, Service Station, Fire Fighting, Fountains.
Technical Specification
Material of Construction
Technical Specification
| H.P. Range | 3.0 to 10 H.P. Three Phase |
| Operating Discharge Range | 40 to 270 L.P.M. |
| Operating Head Range | 24 to 330 Meter |
| Per Stage Duty Point Head | 6 Meter |
| Speed | 2880 RPM |
| Outlet Size In Inch | 1.5″ & 2.0″ |
| Operating Voltage Range | 380 to 440 Volt Three Phase |
Material of Construction
| Motor Body | S.S. J4 |
| Stamping | CRNGO 50C-600 Grade |
| Rotor | EC Grade Copper |
| Thrust Bearing | Carbon |
| Bush | LTB-4 & PU Rubber Bush |
| Base, Housing. Connection, Suction & NRV Body | C.I/FG-260 |
| Motor Body Shaft | S.S. 420 |
| Pump Shaft & Couple | S.S. 410 & SS-420 |
| Bowl & Impeller | Nylon With S.S. Neck Ring |
| Winding Wire | EC Grade Copper with Three Coated Polywrap |
